SMOOTH /PLAIN/ STEINMANN PINS
Pictures and drawings are for illustrative purposes only. Not to scale, not in relative proportion.

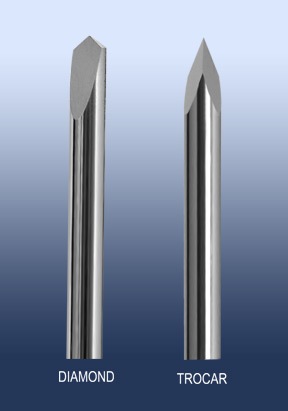

Smooth Steinmann Pin - single diamond tip
Smooth Steinmann Pin - double diamond tip
Smooth Steinmann Pin - single trocar tip
Smooth Steinmann Pin - double trocar tip
Indication
for use:
Kirschners Wires and Stainmann Pins manufactured by Simpex Medical may
be used as implantable devices for fixation of bone fractures, for bone
reconstruction, as guide pins for insertion of another implants, or may be
implanted through the skin so that a pulling force may be applied to the
skeletal system.
| Size | Diamond | Diamond | Trocar | Trocar |
| Diam.* x Length | Single Tip | Double Tip | Single Tip | Double Tip |
| Item # | Item # | Item # | Item # | |
| 5/64" x 9" | D-078-S | D-078 | T-078-S | T-078 |
| 5/64" x 12" | D-078-12S | D-078-12 | T-078-12S | T-078-12 |
| 3/32" x 9" | D-093-S | D-093 | T-093-S | T-093 |
| 3/32" x 12" | D-093-12S | D-093-12 | T-093-12S | T-093-12 |
| 7/64" x 9" | D-109-S | D-109 | T-109-S | T-109 |
| 7/64" x 12" | D-109-12S | D-109-12 | T-109-12S | T-109-12 |
| 1/8" x 9" | D-125-S | D-125 | T-125-S | T-125 |
| 1/8" x 12" | D-125-12S | D-125-12 | T-125-12S | T-125-12 |
| 9/64" x 9" | D-140-S | D-140 | T-140-S | T-140 |
| 9/64" x 12" | D-140-12S | D-140-12S | T-140-12S | T-140-12 |
| 5/32" x 9" | D-156-S | D-156 | T-156-S | T-156 |
| 5/32" x 12" | D-156-12S | D-156-12 | T-156-12S | T-156-12 |
| 3/16" x 9" | D-187-S | D-187 | T-187-S | T-187 |
| 3/16" x 12" | D-187-12S | D-187-12 | T-187-12S | T-187-12 |
* Diameter: 5/64" = 2.0mm; 3/32" = 2.4mm; 7/64" = 2.8mm;
1/8" = 3.2mm; 9/64" = 3.6mm; 5/32" = 4.0mm;
3/16" = 4.8mm
- Material: 316LVM Stainless Steel (implant grade, U.S. made and certified).
- Sold non-sterile, six per pack.
- All items in stock, available for immediate delivery.
- Please ask about availability of any sizes and styles not listed.
To order, please call 800-851-9753 or fax your purchase prder to 800-705-8443.
